HTC One X Screen Repair Video Guide

June 4, 2018 | 0 Comments

HTC One X Screen Repair Video Guide

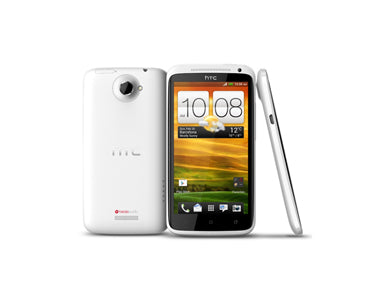

This video guide is for the HTC One X. If you have damaged your screen or other internal parts on your One X, this repair guide will show you how to quickly replace damaged parts. This guide was compiled by the Repairs Universe team and will walk you through the steps required to replace a damaged screen assembly.

This guide will help you to install the following HTC One X part(s):

Tools Required:

HTC One X take apart guide:

We recommend watching the below video from start to finish before starting the repair, and then pausing / rewinding and reviewing when needed.

Reverse the instructions above to reassemble your phone.

Applying Adhesive to the Touch Screen Digitizer:



HTC One X Written Repair Guide:

  • To begin, use a safe open pry tool to begin releasing the back housing. Start at the bottom of the device and work your way around the edges, applying pressure to pop the case off. With all 3 sides released you can pull the device from the back cover. Be careful as the batter is often adhered to the housing and will need to be removed with the rest of the device.
  • With the back cover removed, we can now remove the small plastic housing located near the camera. Using a small Phillips screwdriver, remove the five (5) screws shown in red on figure 1.

  • There will be one (1) more small Phillips screws that will be located at the bottom of the motherboard, near the battery, that will need to be removed.
  • We can now begin releasing all the connections located on the motherboard. Release the single pop connector and jaw connector located on the top of the motherboard (shown in orange in figure 1).
  • Release the power button flex cable and volume button flex cable from the housing. These will be lightly adhered to the housing (shown in green in figure 1).
  • You can now gently lift the motherboard up, being careful as it is still attached with flex cables. The battery can also be swung out, revealing two (2) more connection on the skinny part of the motherboard. Release these two connections and remove the motherboard and battery from the device (shown in figure 2).

  • Use a heat gun or hair dryer to begin warming the front of the screen assembly. Work around the outside edges of the screen on medium heat for about 45 seconds. This will soften the adhesive holding the screen assembly to the housing.
  • Once the screen is properly heated you can use a safe open pry tool to being lifting the screen assembly away from the housing. Be sure to lift both screens out at the same time.
  • After the screens are partially released, be sure the flex cables are fed through the housing. Remove the screen assembly.
  • Use the heat gun or hair dryer again to warm the seal between the touch screen and LCD screen. Use quick movements for about 30 seconds. Once this is complete, use a safe open pry tool to carefully separate the screens.
  • You can now replace the touch screen digitizer or LCD screen.

Reverse the instructions above to reassemble your phone.
