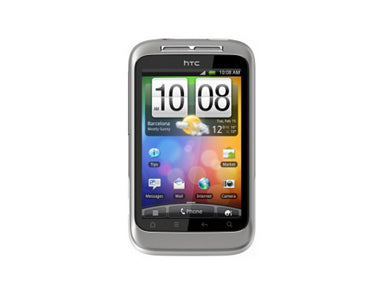

HTC Wildfire S Video Take Apart Repair Guide

June 4, 2018 | 0 Comments

HTC Wildfire S Video Take Apart Repair Guide

Repair a damaged touch screen or LCD screen on your HTC Wildfire S following this take apart repair guide provided by the RepairsUniverse team. This guide will walk you through all the steps required to safely and quickly repair your HTC Wildfire S.

This guide will help you to install the following HTC Wildfire S part(s):

Tools Required:

HTC Wildfire S take apart guide:

We recommend watching the below video from start to finish before starting the repair, and then pausing / rewinding and reviewing when needed.



Reverse the instructions above to reassemble your phone.

Applying Adhesive to the Touch Screen Digitizer:





This is the HTC Wildfire S take apart repair guide. Following this guide will help you take apart the HTC Wildfire S fairly easily in a step by step manner giving you a chance to replace faulty parts. Once you have replaced the parts you want, the guide can be used in reverse to put everything back together again.


This guide will help you replace the following Wildfire S parts:

Tools:

HTC Wildfire S Take Apart Repair Guide:

  • The first step will be to remove the back battery cover. From there, you can then remove the battery and sim card.
  • Remove the five (5) screws, 4 of which are Torx T5 and one of them is a small Philips.



  • With the screws removed, use a safe open pry tool to release the clips holding the back housing in place. Carefully remove this back housing.
  • Normally the volume and power button will fall out of the housing. Be sure to put these to the side.
  • There are two (2) Philips screws that need to be removed on the motherboard. One in the top right, the other in the lower left.
  • Remove the 3 pieces of black tapes covering all the connectors. Lift the white part of the jawbone connector and remove the flex cable.
  • Carefully lift the power and volume button flex cables from the housing. They are held in place with a small bit of adhesive.



  • You can now remove the motherboard, be careful that no other cables or screws are holding it in place.
  • Pull up the digitizer flex cable from the LCD and fully remove the LCD screen.
  • Use a heat gun or hair dryer to heat the outside edges of the front housing. Use medium heat and quick movements for about 45 seconds. You can now use a safe open pry tool to release the screen from the housing. Reheat the adhesive if necessary.

Simply replace the damaged parts with the new ones and reverse the order to put your phone back together again.


Replacing HTC Wildfire S Speakers

This video guide for the HTC Wildfire S will walk you through replacing a faulty or damaged loud speaker. The RepairsUniverse team has compiled this guide in order to safely and quickly replace a faulty ringer on your HTC phone.

This guide will help you to install the following HTC Wildfire S part(s):

Tools Required:

HTC Wildfire S Loud Speaker Repair Guide:

HTC Wildfire S Ear Speaker Repair Guide:

Notice:

Repairs Universe's guides are for informational purposes only. Please click here for details.
Learn about restrictions on reproduction and re-use of Repairs Universe's repair/take-apart/installation guides, and about creating hyperlinks to our guides.
